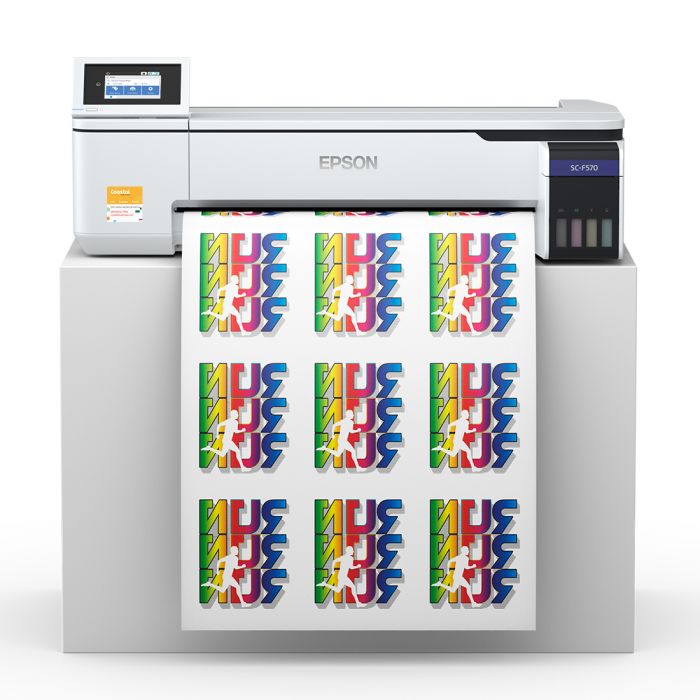

Epson SureColor F570 24" Desktop Sublimation Printer

This item has been discontinued and is no longer available to order. It has been replaced with the F570 Pro version that includes more features. Please click the link to see the new Epson F570PE Pro model.

Epson F570 Standard Desktop Dye Sublimation Printer

Introducing Epson's first ever desktop sublimation printer! The Epson SureColor F570 is the first desktop sublimation printer to print up to 24" wide, so it can handle all of your sublimation projects  big and small!

Get fast, reliable dye-sub printing right out of the box with the 24" SureColor F570. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows® and Mac®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

*TexPrint R paper is not recommended with this model printer

Order Your F570 From Coastal & Receive:

  • 3 Rolls of DS Transfer Multi-Use Paper (one 24" x 100' roll & two 17" x 100' rolls)
  • 2 Full Sets of Ink
  • Free Setup & Install Assistance
  • Free Lifetime Technical Support
  • Astounding print quality: PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology
  • Get bright, brilliant images: Vibrant ink delivers extraordinary color saturation and high contrast
  • Versatile media support: Accommodates rolls and sheets up to 24" wide; includes a 50-sheet auto-feed tray and built-in cutter for added efficiency
  • Replace ink less often: High-capacity ink bottles with auto-stop for easy, mess-free filling
  • Tackle a variety of print jobs: General-purpose transfer paper produces amazing images on both soft and rigid materials
  • Reliable performance: Backed by Epson® world-class service and support
  • Compact, clean design: Ultra small, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
  • Easy printing right out of the box: Comes equipped with software optimized for dye-sublimation, including specialized drivers for both Mac and Windows
  • Intuitive operation: Large 4.3" LCD color touchscreen simplifies print tasks
  • Flexible connectivity: Easily connect to the printer via USB, Ethernet or integrated wireless
  • Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
  • Maximum Print Resolution: 2400 x 1200 dpi
  • Minimum Ink Droplet Size: Variable Droplet Technology can produce up to three different sizes per line
  • Nozzle Configuration: Color and monochrome heads; 800 nozzles x 4 channels
  • Ink Type: Ink Bottles 140mL
  • Replacement Ink:
    • Black Ink Bottle (T49M120)
    • Cyan Ink Bottle (T49M220)
    • Magenta Ink Bottle (T49M320)
    • Yellow Ink Bottle (T49M420)
  • Operating Systems:
    • Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP
    • macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x
  • Temperature:
    • Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
    • Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
    • Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
  • Humidity:
    • Operating: 20–80% (no condensation)
    • Operating (Recommended): 45–60% (no condensation)
    • Storage: 5–85% (no condensation)
  • Sound Level:
    • Operating: Approx 50 dB(A)
    • Sleep: Approx 32 dB(A)
  • Dimensions:
    • Without Stand: 38.2" x 20.7" x 9.6" (970 x 505 x 230 mm)
  • Weight:
    • Without Stand: 84 lb (38 kg)
  • Eco Features:
    • ENERGY STAR® qualified
    • RoHS compliant
    • Recyclable product
    • Epson America, Inc. is a SmartWay® Transport Partner
  • Safety Approvals: UL (MET), FCC (Class A), CSA, CE, EMC
  • Country of Origin: Indonesia
  • Warranty: Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday
  • Maximum Paper Width: 24.4"
  • Minimum Cut-sheet Size: 8.27 x 11 (1 sheet and ASF)
  • Minimum Paper Width: Roll: 13"/Sheet: 8.27"
  • Maximum Printable Length: Limited by application, OS and driver/RIP used
  • Sheet Loading: Auto Sheet Feeder, up to 11.7" wide
  • Single Sheet, Top-loading: Up to 24.4" wide
  • Left/Right Margins: 3 mm each (0.24" total)
  • Single Roll-to-Roll / Top-loading Roll: Up to 24.4" wide
  • Media Core: 2” User-adjustable roll media adapters
  • Maximum Roll Diameter: Up to 4.3"
  • Media Thickness: Up to 8.6 mil
  • Roll Cutting: High-speed internal rotary cutter; auto or manual
  • Roll Paper Remaining: The amount of remaining paper can be controlled from the control panel
  • Display: 4.3" Touchscreen
  • Printer Language: ESC/P raster
  • Interfaces: SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n), Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct
  • Rated Voltage: AC 110–240 V
  • Rated Frequency: 50–60 Hz
  • Rated Current: 1.4 A
  • Power Consumption:
    • Printing: Approx. 22 W
    • Ready: Approx. 8 W
    • Sleep: approx. 1.6 W
    • Power Off (Stand By): 0.2 W
