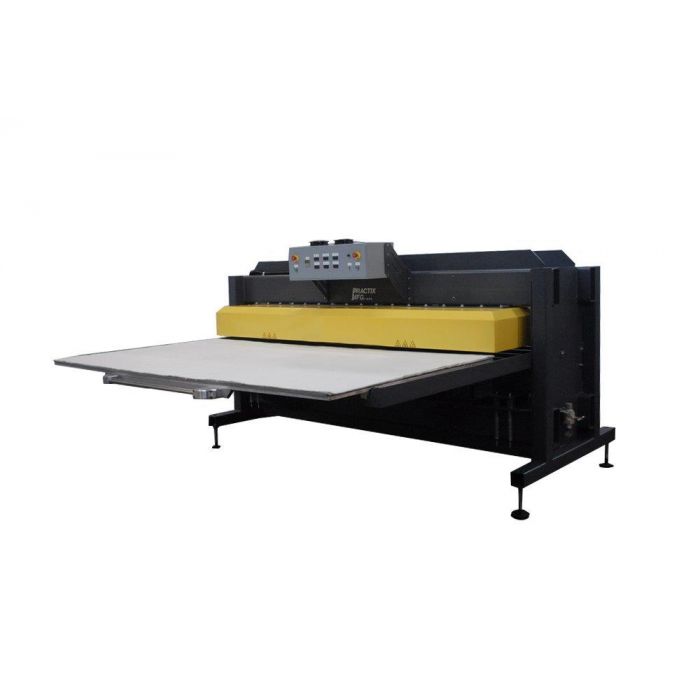

Practix Single Platen 60" x 80" (5ft x 9ft)
This machine will employ top heat with a surface area of 60” deep x 108” wide. The OK-160SB is fitted with a drawer feed that will deliver the part to the pressing area. This machine will have a maximum pressure of 40 Tons at 100 pounds gauge. Features 2 inches of clearance from the top of the tray to the upper heated platen with a 6-zone heat control on the heated platen and is fitted with true solid-state relays. Practix uses the best MI heaters available with a unique mounting system to facilitate replacement. The higher wattage of the heater provides minimum thermal lag between presses. The OK-160SB press will also need a supply of compressed air of 12 cubic/ft per cycle. A loading dock and good-sized fork lift will be needed at time of installation. This machine will require a three phase 240-volt service @ 140 amps. This is a plug and play machine, no install required.
|Sheets per Pack||N/A|
|See Full Instructions/Documentation||N/A|
