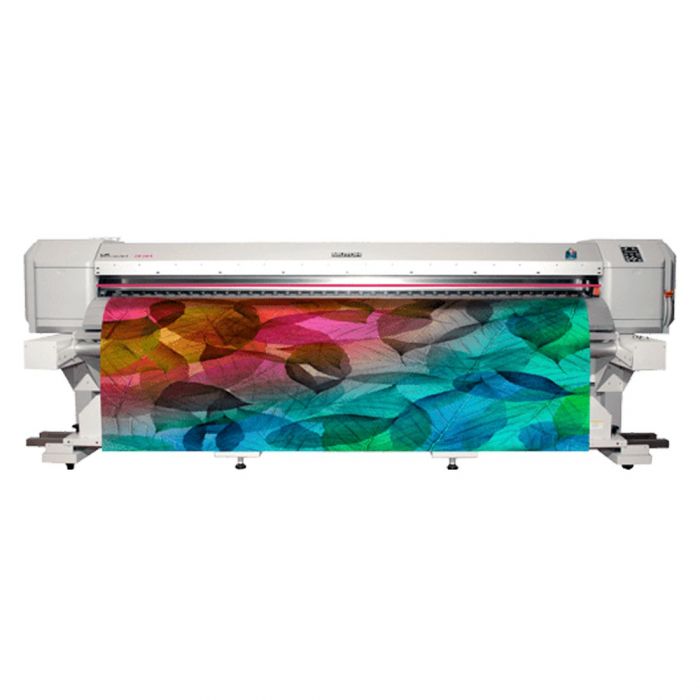

Mutoh ValueJet 2638WX 104” Dye-Sublimation Printer

Super-Wide Images Meet Unmatched Quality

Mutoh’s ValueJet 2638WX is a 104-inch grand format printer features a staggered dual-head design for faster production speeds to create super-wide images with unmatched quality. With print speeds of 1,168sqf/hr and print widths that are over eight feet wide, the VJ2638WX not only saves you time and money but is also capable of producing high-quality images for a number of popular applications. These include designs and patterns for trade show graphics, flags, banners, custom clothing, interior design, point of purchase displays, and much more.

Features:

• 104 inch dye-sublimation
• Up to eight color
• Print speeds up to 1,168sqft/hr
• Staggered dual heads
• Open ink architecture
• Open architecture software RIP
• Automatic sheet off function
• Media support cradle
• Heavy duty take-up system included
• One year on-site limited warranty included
• Universal Printer- Can be ordered with Eco-Ultra or Dye-Sub ink configuration

Specifications:

• Print Method: Drop-On Demand, Piezo Drive Method
• # of Nozzles / # of Heads: (180 x 8 rows) / 2 heads
• Ink Type: Aqueous / Dye-Sub, can also be ordered as Eco-Ultra
• Variable Dot: Yes
• Minimum Droplet Size: 3.5 pl
• Print Modes: 1440/1080/720/540/360dpi, 29 modes
• Maximum Print Speed / Resolution: 1,168 sq/ft (360x360dpi)
• Maximum Resolution: 1440 dpi
• Head Height:
  • Low: 1.5mm
  • Medium: 2.5mm
  • High: 4.0mm
• Maximum Media Width: 104 inches
• Maximum Print Width: 103.6 inches
• Maximum Media Roll Weight: 220.5 lbs
• Media Roll Diameter / Core: 9.8” maximum / Core 3” or 2”
• Media Support Cradle: Standard
• Heating: Upper/Lower
• Heavy Duty Take-Up System: Standard
• Media Auto Cut: Standard
• RIP Software: Open
• Power Requirements: 2x 100-120V or 200-240V / 20AMP
• Operating Temperature: 68°F – 89.6°F
• Operating Humidity Range: 40% - 60%
• Dimensions (Printer) WxDxH: 146” x 34.9” x 49.65
• Weight (Printer): 534 lbs / Stand 91 lbs
• Warranty: 1-Year On-Site Limited
