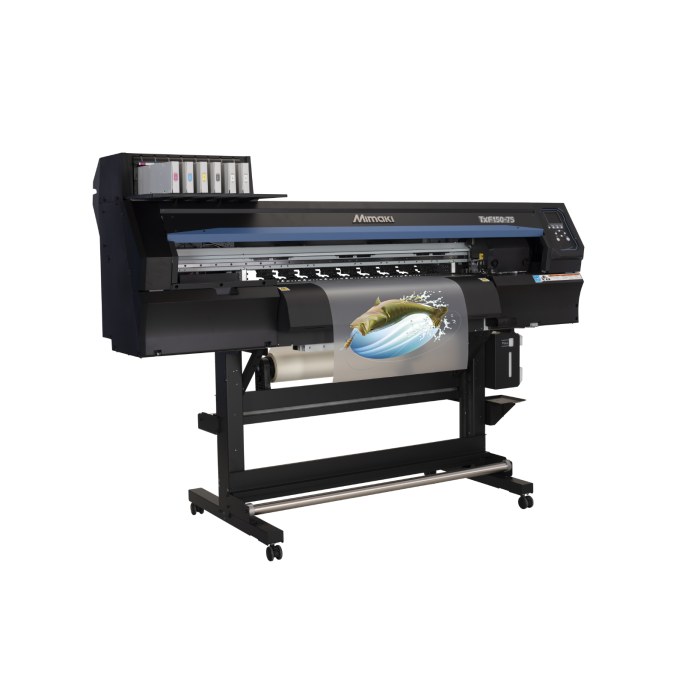

Mimaki TxF150-75 32" DTF Printer
Taking Direct-to-Film (DTF) to New Heights with the Mimaki TxF150-75 32" DTF Printer!
Mimaki's TxF150-75 Direct-to-Film (DTF) printer is the latest innovation in digital printing technology. This revolutionary printer allows users to print high-quality, full-color designs directly onto films, which can then be powdered with an adhesive and heat-pressed onto any type of garment or fabric.
With its advanced features and capabilities, the Mimaki TxF150-75 is perfect for businesses in the textile industry looking to streamline their production process and offer unique, customizable products to their customers.
One of the standout features of this printer is its ability to overcome the common ink ejection and ink sedimentation issues of current DTF printers in the current market.
In addition, the TxF150-75 boasts a high-resolution printing capability of up to 1,440 dpi, ensuring clear and crisp designs every time. Its wide color gamut also enables accurate color matching for both Pantone and CMYK colors, giving businesses the ability to reproduce precise brand colors for their clients.
The TxF150-75 is also equipped with a roller system, ensuring consistent tension on the film during printing for optimal results. And with its user-friendly interface and intuitive software, even those new to textile printing can easily navigate and create stunning transfers time after time!
User-Friendly Design, with Advanced Ink Packs
Printer Includes:
- Rasterlink 7 RIP
- 12 - Month Warranty (Warranty starts when printer is invoiced)
- Mimaki Technical Support
Features:
- White Ink Circulation System - Reduces frequent nozzle cleaning and ink waste.
- Nozzle Check Unit - Automatic nozzle sensor defect detection and automatic cleaning to recover blocked nozzles.
- Nozzle Recovery System - Offers continous production when nozzle defect is unrecoverable by nozzle cleaning.
- Aluminum Bulk Ink Packs - Assists with degassing of ink and implements stable ink pack replacement in printer.
- Blur Free Image Quality - 3-way (Preheater, Print heater, Post heater) intelligent heater controls the spread of ink on the transfer sheet.
- Cutting Blade.
- Advanced Pass System.
- Variable Dot Technology.
- Waveform Control.
- Uninterrupted Ink Supply Sustem.
- Fine Diffusion.
- Stable Printer Operation.
- Roller System for stable transport of DTF Film - Fine tuned pressure of rollers on transfer sheet.
- Prints up to 35.5 sqft/hr.
- Ink Set - Cyan (1), Magenta (1), Yellow (1), Black (1), White (2).
- DTF Pigment Ink ECO PASSPORT Certification.
- Efficient Technical Support provided by Mimaki Brand.
Specifications:
- Printhead: On-demand piezo head
- Print Resolution: 720dpi, 1,440dpi
- Print Speed: Up to 35.5 ft²/hr (3.3m²/hr)
- Maximum Print Width: 31.5" (800mm)
- Maximum Media Width: 31.9" (810mm)
- Ink Type/Color: Pigment Based Ink PHT50 (C,M,Y,K,W)
- Ink Capacity: 600 mL ink C, M, Y, K pack (500 mL - white)
- Media Thickness: Up to 0.04” (1 mm)
- Rolled Media Weight: 99.2 lbs (45 kg)
- Certifications: VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS) CB, REACH, ENERGY STAR®, RCM, KC
- Interface: 1000 Base-T Ethernet cable or USB2.0 cable
- Power Supply: Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
- Power Consumption: 100V system: 0.9kW or less, 200V system: 1.2kW or less
- Operational Environment Temperature: 68 – 86 °F (20 – 30 °C)
- Humidity: 35 – 65 % RH (Non condensing)
- Dimensions (W × D × H): 77.4 x 27.6 x 54.8 in (1965mm×700mm×1392mm)
- Weight: 277.8 lb (126kg)
- Installation: A weight scale is required for measuring ink levels during installation.
| Manufacturer | Mimaki |
|---|---|
| Print Applications | Direct-to-Film (DTF) |
| Printer Type | Direct-to-Film (DTF) |
