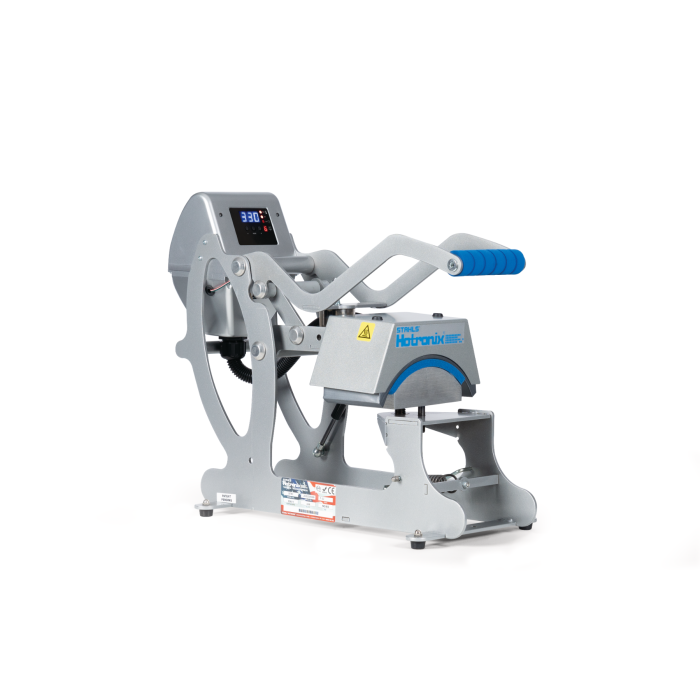

Hotronix STXCAP Auto Opening Digital Cap Heat Press Machine

Warning! This item is exempt from free shipping.

If you want to add transfers, Pro Cap embroidery, names or numbers to caps, you need a cap press with curved upper and lower platens. The Hotronix Cap Heat Press now comes with the Auto- Release feature, so the platen opens automatically after pressing. Since headwear comes in many shapes and sizes, the Hotronix Cap Heat Press has interchangeable platens available to make printing any size cap easy. The Hotronix Cap Heat Press comes with a standard size lower platen.

The Hotronix heat press machine auto-open cap press features automatic release without the use of an air compressor and magnetic assisted lock down for maximum pressure with minimal effort. This cap press also has fully digital time and temperature controls. The space saving clam shell design allows more room for multiple heat press machines which helps create an environment for maximum potential and production. Plus, this press features Hotronix Perfect Pressure for a perfect application every time - whether you're printing on thin T-shirts or thick sweatshirts.

Benefits of a Hotronix Heat Press Machine in production:

  • You need a cap press if you plan to print and sell custom headwear
  • It's much easier to apply a transfer to a cap than to screen print on a cap
  • Cap presses can also be used to add heat seal embroidery to caps
  • The Hotronix Cap Press features Auto-Release Opening
  • Interchangeable platens are available for all size caps
  • Cap presses can also be used to print on sleeves and other small areas


  • Regular platen measures 3.5" x 6"
  • Magnetic assisted lockdown with automatic release
  • Digital time and temperature controls
  • Digital pressure display
  • Platinum RTD heat sensor
  • Cast in tubular heating element every 2" to ensure no cold spots
  • 3/4" thick Teflon coated upper platen
  • Space saving clam shell design
  • Wide opening for easy layout
  • 3/16" HRPO laser quality steel framework
  • 3/8" Silicone rubber bottom pad
  • Available in 110V or 220V


  • Weight - 41 pounds
  • Approved UL, ULC, CE and ROHS
  • Premium warranty
  • Shipping dimensions: 26" x 15" x 20"
  • The heating element shall be warranted for the life of all heat presses manufactured by Stahls Hotronix. There is a five (5) year warranty on major components, two (2) year warranty on the circuit board and a one (1) year on all other components.
More Information
Manufacturer Hotronix
Manufacturer Leadtime 1-2 Business Days
Features Auto-Open, Digital Temperature, Digital Pressure, Digital Time
Heat Press Size 3.5" x 6"
Press Style Hat Press, Automatic
