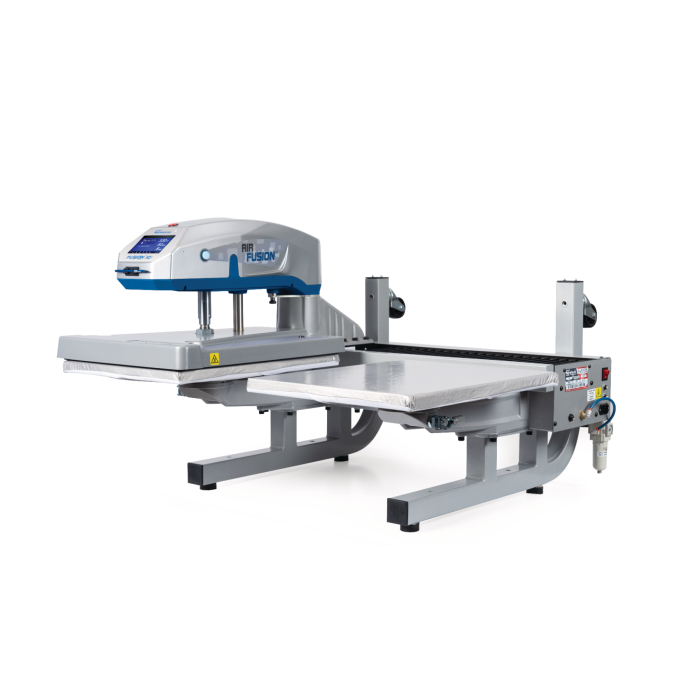

Hotronix Dual Air Fusion IQ Pneumatic Heat Press Machine - XRF2 - 16" x 20"

The Hotronix Dual Air Fusion IQ doubles down on performance, giving you 50% more productivity than a standard swinger-style heat press. With groundbreaking A and B workstations that operate independently or in unison, you get the additional performance of an extra heat press while maximizing time and space. With the inclusion of a second platen, the Dual Air Fusion doubles down on proven Hotronix technology and takes performance - and profits - to the next level.

The Dual Air Fusion IQ comes equipped with a upgraded controller, featuring a larger, higher resolution screen that includes troubleshooting and self-diagnostic capabilities. You can also now track performance and print productivity reports anywhere with the new Hotronix Online Portal.

Features:

• Fusion IQ controller features troubleshooting and self-diagnostic capabilities
• Track performance and print productivity reports from anywhere with the new Hotronix Online Portal
• New larger, higher resolution screen with improved touchscreen response
• 16" x 20" Dual Quick Change Platens
• Auto-Adjust Pressure automatically adjusts to the thickness of the item being printed
• Full Threadability on the lower platen: position the garment, rotate, and decorate any area
• Dual platens allow a heat-free workspace on one platen while the other is being pressed
• Perfect for Direct-to-Garment printing cut production time in half by programming one station for pre-treatment and the other for curing
• Rodless transmission for smooth, quiet operation
• Operates in full-auto, semi-auto, or manual modes
• Touch screen stores frequently used settings, production cycle counter, and auto on/off capability
• 120 PSI for high pressure applications
• Optional quick-change platens; no tools required
• Program up to four different pressure and time settings
• Requires air compressor (not included) with minimum 1 horsepower and 5 gallon hold tank. Uses 2.3 CFM
• Recommended table size: 24" x 36" x 28" with 30" height
• Made in the USA
• Cast-in tubular heating
• Powder coated finish
• UL/ULC/CE/RoHS compliant
• PLEASE NOTE: This press requires an air compressor and requires a 220 volt power connection.
• A $200 Crate Fee will apply to all orders

Specifications:

• 220 Volt/2250 Watts/10 Amp
• Available in 120v
• Actual Weight: 260 lbs.
• Shipping Weight: 500 lbs.
• Dimensions: 38" L x 38" W x 26" W
• Shipping Dimensions: 45" L x 45" W x 30" W

Warranty:

• 5 years on framework
• 2 years on control board
• 1 year warranty on parts and labor
• Lifetime warranty on heating element
