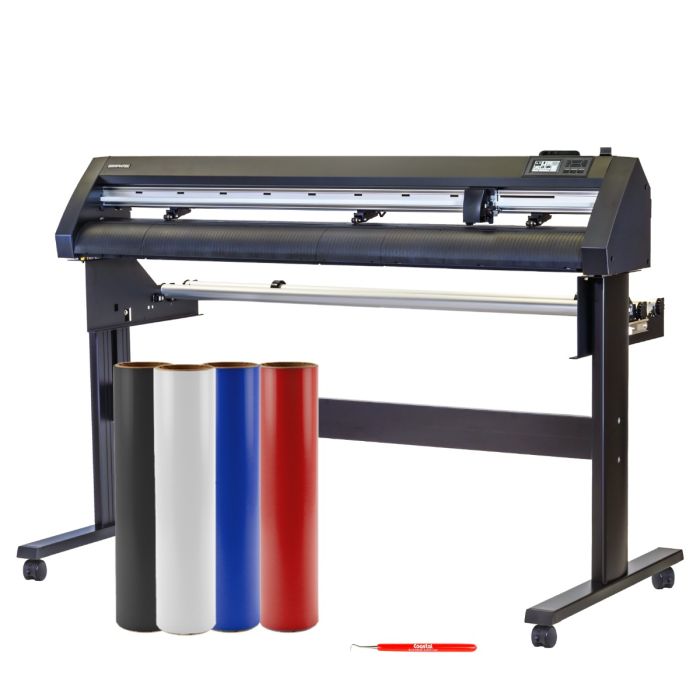

Graphtec CE8000-130 ETHERNET 50" Vinyl Cutter With Stand Bundle

The CE8000-130 50" Vinyl Cutter stands unrivaled in the vinyl industry, delivering an incredible balance between precision and speed. Expertly designed to cater to a variety of materials such as adhesive vinyl, heat transfer vinyl, cardstock, or paper, this cutter consistently outshines its competition in terms of detailed work and speed.

One standout feature of the CE8000-130 is its Advanced Registration Mark Sensing (ARMS) system. This revolutionary technology automatically identifies registration marks on your material to ensure perfection in each cut. This means no more manual alignment, saving you time and energy, particularly when dealing with larger or more detailed designs.

The CE8000-130 also provides superior control over cutting pressure and speed, allowing customization according to the material. This guarantees precise and neat cuts on delicate materials, with zero risk of damage or tearing.

The CE8000-130 isn’t just about high precision and speed, though. It's also designed for durability and extended life. Its heavy-duty motor and sturdy steel frame can withstand continuous, high-volume production. Plus, with its easy-to-use controls and intuitive software interface, beginners will find it a breeze to get the best out of this high-quality machine.

Technical Specifications:

• Configuration: Grit roller with digital servo drive system
• Maximum Cutting Area: 50" W x 164" L
• Cutting Area of Guaranteed Accuracy: 50”×79” / 49”×16.4’ *1 / *2
• Mountable Media Width: 2", 54"
• Number of Push Rollers: 3 rollers
• Maximum Cutting Speed: 39"/s, in all directions
• Maximum Acceleration: 45.60' (13.9 m/s2), at 45° direction
• Maximum Cutting Force: 4.41 N (450 gf)
• Minimum Character Size: Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
• Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm
• Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
• Mountable Number of Tools: 1 tool
• Blade Type: Superteel
• Pen Type: Oil-based ballpoint, Water-based fiber-tip pen
• Media Type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) stencil material
• Interface: USB 2.0 (Full Speed), Wireless LAN, 10BASE-T/100BASE-TX
• Buffer Memory: 2 MB
• Command Sets: GP-GL / HP-GL (Set by command or auto-detect)
• Display: Touch Panel Screen (240dots x 128dots), supports 10 languages
• Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
• Alignment Accuracy: Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
• Power Source: 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
• Power Consumption: 120 VA
• Operating Environment: 10 to 35ºC, 35 to 75 % R.H. (non-condensing)
• Guaranteed Accuracy Environment: 16 to 32ºC, 35 to 70 % R.H. (non-condensing)
• External Dimensions: Approx. 65" x 32" x 42.3"
• Weight: Approx. 106 lbs or 40 kg
• Compatible Operating System: Windows 11 / 10 / 8.1 / 64-bit editions, and Mac OS 10.2 (Sierra) to 13 (Ventura)
• Included Software: Cutting Master 5, Graphtec Studio 2 (For Windows and Mac)
• Compatibility Standards: Safety - PSE, UL/cUL, CE mark, EMC - VCCI Class A, FCC Class A, CE mark
• Warranty: 2 Year with Graphtec
