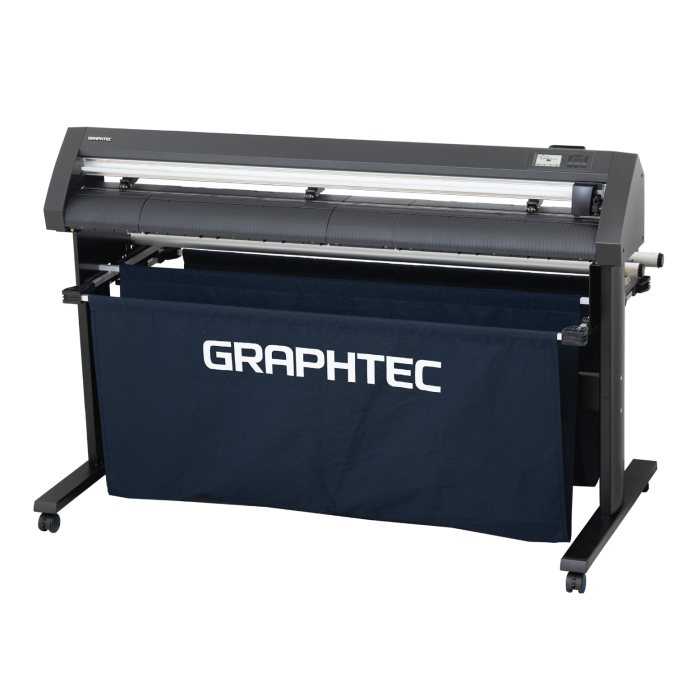

Graphtec CE8000-130AKZ 50" Vinyl Cutter With Stand Bundle - ETHERNET
Specialty Cutter for Aftermarket Automotive Styling


The Graphtec CE8000-130AKZ is engineered specifically for the aftermarket automotive industry, offering precision cutting for window tint film, paint masking, vinyl lettering, graphics, and more. Designed for efficiency and accuracy, this cutter enhances productivity while maintaining superior cutting quality.
The CE8000-130AKZ features Graphtec's popular Cutting Channel, making perforated and through-cut operations effortless. This powerful cutter includes a full suite of Graphtec software, including Cutting Master 5 (a plug-in for Adobe Illustrator and CorelDRAW) and the user-favorite Graphtec Studio 2 for seamless design and cutting.
Designed for both PC and Mac users, the CE8000 series offers wireless connectivity for ultimate convenience, along with a USB thumb drive port for quick, hassle-free operation.
One standout feature of the CE8000-130AKZ is its Advanced Registration Mark Sensing (ARMS) system. This revolutionary technology automatically identifies registration marks on your material to ensure perfection in each cut. This means no more manual alignment, saving you time and energy, particularly when dealing with larger or more detailed designs.
The CE8000-130AKZ also provides superior control over cutting pressure and speed, allowing customization according to the material. This guarantees precise and neat cuts on delicate materials, with zero risk of damage or tearing.
The CE8000-130AKZ isn’t just about high precision and speed, though. It's also designed for durability and extended life. Its heavy-duty motor and sturdy steel frame can withstand continuous, high-volume production. Plus, with its easy-to-use controls and intuitive software interface, beginners will find it a breeze to get the best out of this high-quality machine.
Touch Screen with Keypad


Updated Blade Holder


Data Link Barcode System


Improved Tool Holder


Accuracy & Precision Reimagined -
Elevate your precision and efficiency with the Graphtec CE8000-130AKZ 50" Vinyl Cutter.
Inspired by the esteemed CE7000-130 Cutter, this advanced cutter is loaded with improved features designed to enhance your workflow.
Discover enhanced cutting functions with a device that not only matches but exceeds its precursor in all dimensions.
Advanced Features:
- Optimized for Automotive Applications – Perfect for tint film, vinyl, and masking.
- High-Speed Precision – Cuts at speeds up to 39 inches per second.
- Unmatched Tracking – Maintains precision over 15 feet of material.
- Heavy-Duty Servo Motor – Ensures smooth, accurate, and efficient cutting.
- Touchscreen Interaction and Physical Key Inputs
- User-friendly Menu Navigation
- Wireless LAN Connection
- Integrated Firmware Updates
- Reconstructed Bladeholder/Mount for Simplicity in Altering Tools and Blade Placement
- Reimagined Tool Holder with Magnetic Base for Enhanced Mobility
- Alerts for Task Completion and Errors
- Inbuilt Fan Sensor for Auxiliary Feeding
- More Refined Blade Holder Design




Included Items:
- 50" Graphtec Vinyl Cutter with Stand
- Graphtec 60° Blade
- Graphtec Blade Holder
- Fiber-Tip Pen Holder
- Media Catch Basket
- Anti-Electrostatic Strings with Magnet
- Graphtec Studio 2 Software, Cutting Master 5 Plug-in
- Setup Manual
- 2-year Warranty
- Lifetime Technical Support




Technical Specifications:
- Configuration: Grit roller with digital servo drive system
- Maximum Cutting Area: 50" W x 164" L
- Cutting Area of Guaranteed Accuracy: 50”×79” / 49”×16.4’ *1 / *2
- Mountable Media Width: 2", 54"
- Number of Push Rollers: 3 rollers
- Maximum Cutting Speed: 39"/s, in all directions
- Maximum Acceleration: 45.60' (13.9 m/s2), at 45° direction
- Maximum Cutting Force: 4.41 N (450 gf)
- Minimum Character Size: Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
- Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm
- Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
- Mountable Number of Tools: 1 tool
- Blade Type: Superteel
- Pen Type: Oil-based ballpoint, Water-based fiber-tip pen
- Media Type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) stencil material
- Interface: USB 2.0 (Full Speed), Wireless LAN, 10BASE-T/100BASE-TX
- Buffer Memory: 2 MB
- Command Sets: GP-GL / HP-GL (Set by command or auto-detect)
- Display: Touch Panel Screen (240dots x 128dots), supports 10 languages
- Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
- Alignment Accuracy: Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
- Power Source: 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
- Power Consumption: 120 VA
- Operating Environment: 10 to 35ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed Accuracy Environment: 16 to 32ºC, 35 to 70 % R.H. (non-condensing)
- External Dimensions: Approx. 65" x 32" x 42.3"
- Weight: Approx. 106 lbs or 40 kg
- Compatible Operating System: Windows 11 / 10 / 8.1 / 64-bit editions, and Mac OS 10.2 (Sierra) to 13 (Ventura)
- Included Software: Cutting Master 5, Graphtec Studio 2 (For Windows and Mac)
- Compatibility Standards: Safety - PSE, UL/cUL, CE mark, EMC - VCCI Class A, FCC Class A, CE mark
- Warranty: 2 Year with Graphtec
Manufacturer | Graphtec |
---|---|
Print Applications | Heat Transfer Vinyl |
