Graphtec CE7000-40 15" Vinyl Cutter with Heat Transfer Vinyl Package - DISCONTINUED



General! The Graphtec CE7000-40 has been discontinued. Please check out the CE7000-60.

The CE7000 is the ideal vinyl cutter for all of your garment decoration, sign graphics, and print-and-cut applications.

Take your business to new heights with the all-new Graphtec CE7000 series cutting plotter. The CE7000 expands on the success of the CE6000 with a host of exciting new features that include a new Advanced Registration Mark Sensing System (ARMS 8.0) for fast and accurate print-and-cut applications. The cutter also includes a new DataLink Barcode system to automatically process multiple jobs at the touch of a button, increasing productivity and reducing errors.


  • Graphtec CE7000-40 15" Vinyl Cutter
  • Graphtec Cutting Master 4 Software
  • Graphtec Pro Studio Software
  • Graphtec 45° Blade
  • Hook Weeding Tool w/ Rubber Grip Handle
  • 12" x 5' Gimme5 Heat Transfer Vinyl - White, Black, Red, and Royal Blue
  • 2-Year Warranty (with product registration)
  • Lifetime Technical Support


  • Datalink Barcode
  • Contour & Die Cut
  • ARMS 8.0 (Advanced Registration Mark Sensor)
  • Network Connection
  • USB Offline Operation
  • Increased Production Speed
  • Built-In Convenient Tool Storage
  • Import from Adobe Illustrator and CorelDRAW without Converting the File

Graphtec Barcode System

Datalink Barcode

Save time and reduce the chance of production errors by using barcodes to process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to Cutting Master 4 and Graphtec Pro Studio software. The CE7000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.

Graphtec ARMS System

ARMS 8.0

A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand's free operation. The reading of Registration marks is faster increasing productivity.

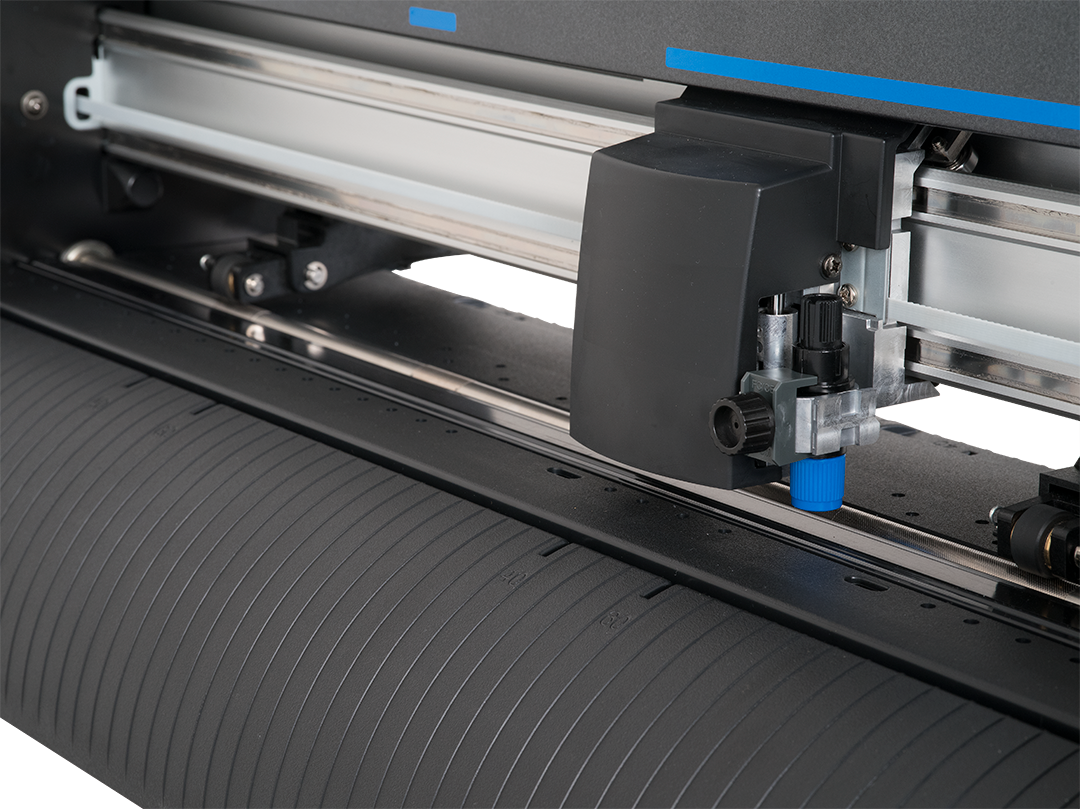

Graphtec Contour & Die Cut Vinyl Cutter

Contour & Die Cut

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

Graphtec USB Offline Operation

USB Offline Operation

A new secondary USB port has been added for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.

  • Configuration: Grit roller with digital servo drive system
  • Maximum Cutting Area: 15" W x 164" L
  • Cutting Area of Guaranteed Accuracy: 14" W x 79" (when using the basket)
  • Mountable Media Width: 2", 19"
  • Number of Push Rollers: 2 rollers
  • Maximum Cutting Speed: 24"/s, in all directions
  • Maximum Acceleration: 69.6' (21.2 m/s2) at 45° direction
  • Maximum Cutting Force: 4.41 N (450 gf) in 38 steps
  • Minimum Character Size: Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm
  • Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
  • Mountable Number of Tools: 1 tool
  • Blade Type: Superteel
  • Pen Type: Oil-based ballpoint, Water-based fiber-tip pen
  • Media Type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m
  • Interface: USB 2.0 (Full Speed), Ethernet, 10BASE-T/100BASE-TX
  • Buffer Memory: 2 MB
  • Command Sets: GP-GL / HP-GL (Set by command or auto-detect)
  • Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
  • Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
  • Alignment Accuracy: Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
  • Power Source: 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
  • Power Consumption: 120 VA
  • Operating Environment: 10 to 35ºC, 35 to 75 % R.H. (non-condensing)
  • Guaranteed Accuracy Environment: 16 to 32ºC, 35 to 70 % R.H. (non-condensing)
  • External Dimensions: Approx. 30.4" W x 11.5" D x 12.3" H (with Basket)
  • Weight: Approx. 27.7 lbs or 13 kg (with Basket)
  • Compatible OS (*2): Windows 10 / 8.1 / 7 and Mac OSX 10.6 - 10.11 - 10.12 - 10.15
  • Included Software: Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac), Windows driver
  • Compatibility Standards: Safety - PSE, UL/cUL, CE mark, EMC - VCCI Class A, FCC Class A, CE mark


Need more help? Click the "Product Instructions" tab at the top for some great video tutorials!


Unpacking and Assembly for the CE7000 Series

Getting Familiar with the CE7000

Blade Assembly for the CE7000

Mounting the Blade Holder on the CE7000

Adjusting the Blade Length of the CE7000

Moving the Tool Head on the CE7000

Loading a Roll on the CE7000

Loading a Sheet of Media on the CE7000

Navigating the Control Panel

Quick Tool Setting Adjustments on the CE7000

Configuring the Conditions on the CE7000

Using the COPY Function on the CE7000

Cutting Intricate Graphics on the CE7000

Stopping the Cutting Operation on the CE7000

Tools for Better Tracking: Sorting on the CE7000

TFBT: Paneling on the CE7000

TFBT: PreFeed and Auto PreFeeding on the CE7000

Downloading Software for the CE7000

Cutting Master 4 Setup on the CE7000

Using Cutting Master 4 on the CE7000

Creating Outline Layers in Adobe Illustrator for the CE7000

Creating Registration Marks and Cutting on the CE7000

Perforated Cutting on the CE7000

Using the Datalink Barcode System on the CE7000

Continuous Operation Using the Datalink Barcode System on the CE7000

Using the Secondary USB Port on the CE7000

More Information
Manufacturer Graphtec
Media Width (up to) 15"
