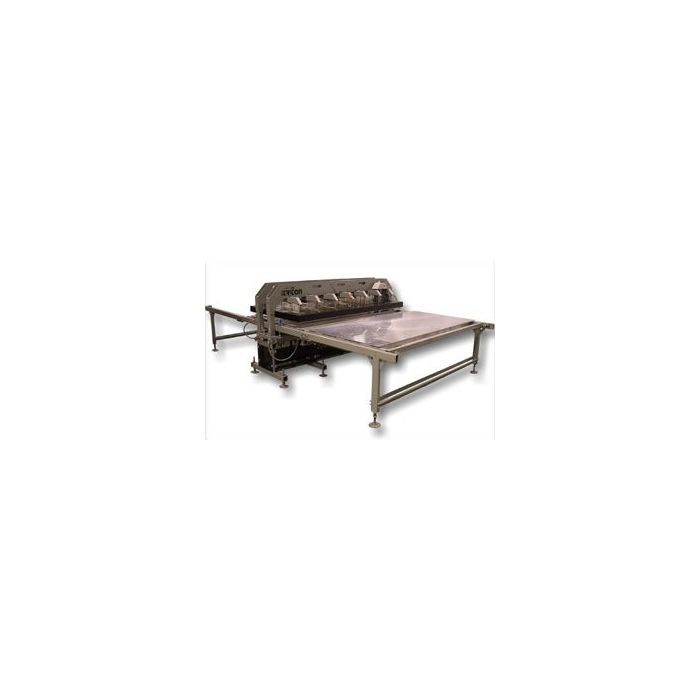

Geo Knight 931-Triton 54" x 72" Auto-Shuttle Single Station Heat Press

The 931 Triton heat presses are air operated automatic large format twin station shuttle presses that range in platen sizes up to 4 feet by 8 feet standard, and 8 feet by 12 feet custom!

The 931 TRITON is a large format pneumatic heat transfer press built for heat pressing a wide variety of substrates. It is geared towards high-production heat pressing of multiple piece goods as well as 4 x 8 sheet materials.

The 931 TRITON Heat Press answers the demand for a more stable, solid work base along with the capability of heat pressing transfers in an oversized large-area environment. Typical applications include heat transfer paper printing onto fabrics such as banners & garments, thicker materials such as carpets & mats, rigid goods like tiles & ceramics, as well as woods, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, laminating, hot stamping, heat sealing and other applications requiring a massive size heat transfer press.

• Digital Integrated Temperature & Time control
• Available in 240V 3-Phase or 480V 3-Phase Power
• Available in Single shuttle or Dual loading table format
• Multi Air Bag Pressure design for Self Leveling of Heat Press Pressure
• Precision PLC Motor Controlled Automatic Indexing of Tables
• Uniform Lift / Parallel Heat Press Platen Action & Adjustable Applied Force
• Productive Foot Pedal Operation & Emergency Release Safety Circuit
• Electronic Photo Eye Safety Sensor Light Curtain Around Heat Press Platen
• 2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
• Oversized heat transfer press platens ranging up to 8ft x 12ft available on request

Industrial Air Bag Pneumatics provide many times heavier pressing force than cylinders. They are also self-leveling and 100% maintenance free.

Photo Eye safety circuitry provides safety protection around the heat press platen. Redundant Micro Switches confirm the location of loading tables before beginning pressing cycle. High-Strength Roller Cams & smooth computer controlled indexing allow the loading tables to quietly & gently bring the work in and out of the heat pressing area. High Wattage Fire Rod Heaters are embedded deep in the core of the extra thick 2 aluminum heat platen. The Heat Transfer Press platen is gun-barrel drilled and heaters are placed in close proximity along the entire length of the heat press platen for the evenest heat possible over the entire heat platen surface.
