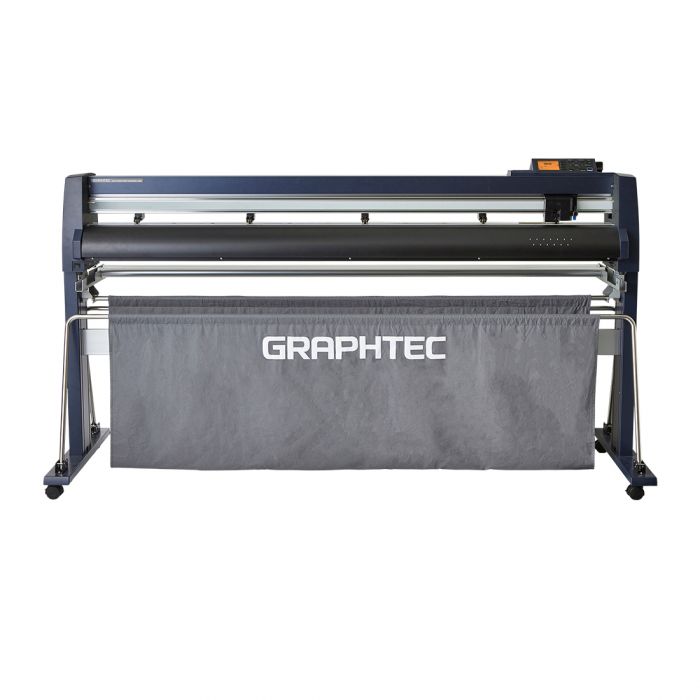

Graphtec FC9000 64" Commercial Vinyl Cutter with Stand

$7,295.00
SKU
FC9000-160

Notify Me When Back in Stock

Warning! This item must ship commercial freight truck and does not qualify for free shipping. Additional delivery time will occur.

Take your vinyl projects to the next level with this 64” Wide Vinyl Cutter from Graphtec. This cutter is perfect for stickers, decals, window signage, highway signage, heat transfer apparel, window tint film, paint protection film, magnets, and sandblast rubber stencils.

The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective.  ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.

Included:

  • Power Cord
  • USB Cable
  • Cutting Blade Holder
  • Cutting Blade
  • Loupe
  • Fiber-Tip Pen Holder
  • Water-Based Fiber-Tip Pen
  • Vinyl Cutter Holding Stand
  • Basket
  • Flange Set
  • DVD-ROM with User Manual, Windows Driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), and Cutting Master4
  • Printed Documents included are Setup Manual, Cutting Blade Manual, and Safety Manual

Specifications:

  • External Dimensions: 84”W x 28”D x 48”H
  • Weight: 154 lbs. (195 lbs. with take-up reel)
  • CPU: 32-bit CPU
  • Configuration: Grit Rolling Plotter
  • Drive Method: Digital Servo Drive
  • Max. Cutting Speed: 58.5 inches per second (45 degree direction), 41.3 (axis direction)
  • Cutting Force: Max. 600 gf in 48 steps
  • Axial Acceleration: Max. 39.2 m/s²
  • Max. Cutting Area: 64 in x 164 ft
  • Guaranteed Precision Cutting Area: 63 in x 32 ft or 35.2 in x 50 ft
  • Mountable Media Width: Min. 1.96 in, Max. 72.83 in
  • Max. Cross Cut Width: 64 in
  • Number of Push Rollers: 4 rollers
  • Compatible Roll Media Diameter: Min 2.99 in, Max 7.8 in (Max diameter is 6.29 in when flange is installed)
  • Distance Accuracy: Max. 0.1 mm or 0.1% of plotted length
  • Blade Types: Supersteel (0.9 mm or 1.5 mm diameter)
  • Pen Types: Water-based fiber-tip pen, Oil-based ballpoint pen
  • Media Types: Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, sandblast resistant rubber up to 1 mm thick
  • Cross-cutter: Built into the tool carriage
  • Display: Graphic type LCD (3.7-inch, backlight)
  • Power Source: 100 V to 240 V AC, 50 / 60 Hz
  • Power Consumption: AC100-240 V, 50/60 Hz

Datalink Barcode

Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.

Unrivaled Print & Cut Accuracy

Graphtec’s Advanced Registration Mark Sensing technology delivers precise Print / Cut results in addition to efficiency boosting features. The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.

Heavy Duty Cutting

No flatbed? no problem. A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types. Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.

Contour & Die Cut

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

Take-Up Reel

The optional take-up reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor.

Optional Accessories:

  • Additional Media Stocker
  • 2nd Pen Holder
  • Flange
  • Additional Push Roller

Other Information:

  • Mechanical Resolution: 0.005 mm
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL ™: 0.025 mm
  • Repeatability: Max. 0.1 mm in plot up to 2 m (excluding the expansion of contraction of the media)
  • Minimum Character Size: Approx. 5 mm alphanumeric (varies depending on character font and media)
  • Mountable Number of Tools: 1 tool (cutting blade, plotting pen, or pouncing tool) in standard, 2 tools (cutting blade  and plotting pen) wen second pen holder (optional accessory) is installed
  • Perforation Cutting: Supported (performed by force control)
  • Command Sets: GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
  • Condition Settings: Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
  • Operating Environment: 50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
  • Guaranteed Accuracy Environment: 60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
  • Included Software: Windows driver, Plotter controller, Graphtec Pro Studio, Cutting Master 4, Graphtec Studio for Mac
  • Compatible OS: Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14
  • Safety: PSE, UL/cUL, CE mark
  • EMC: VCCI Class A, FCC Class A, CE mark
More Information
Manufacturer Graphtec
